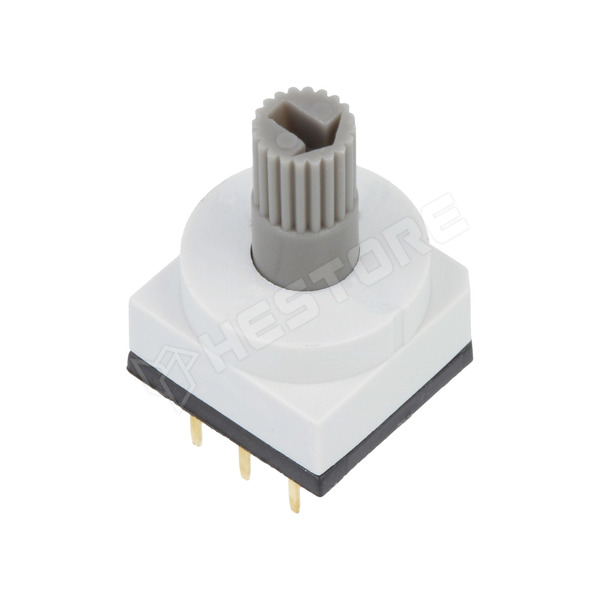

TSR-10

Code switch, positions: 10, THT, Sensor max: 80mΩ, Rsig min: 100MΩ

Manufacturer partno	TSR-10
Manufacturer	SUNGMUN ELECTRONICS CO., LTD.
Mounting	THT
Body dimensions	10x10x6.5mm
Leads	for PCB
Min. insulation resistance	100MΩ
Type of switch	encoding switch
Stable positions number	10-position
Number of positions	10
Switching torque	7Ncm
Max. contact resistance:	80mΩ
Manufacturer series	T/S/Q
DC contacts rating @R	0.2A / 42V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.424.52

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	939 Ft
5+	741 Ft
10+	708 Ft
20+	686 Ft
50+	662 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
