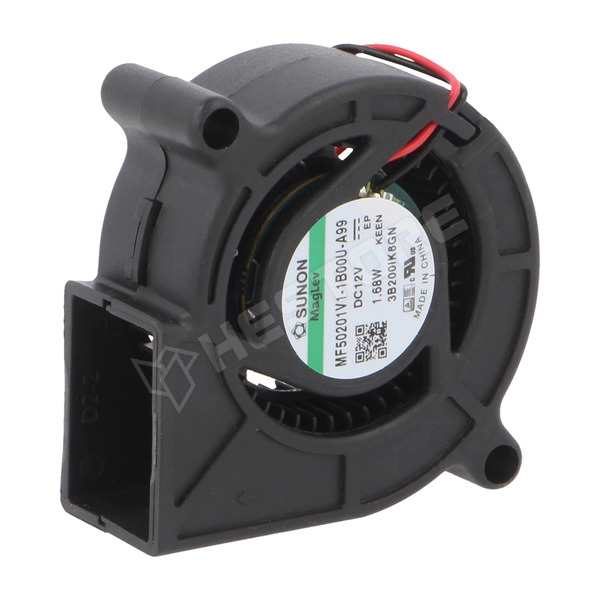

MF50201V1-1B00U-A99

Fan, DC, 12V DC, 50x50x20mm, Vapo, 9.85m³/h, blower

MF50201V1-1B00U-A99 / Fan, DC, 12V DC, 50x50x20mm, Vapo, 9.85m<sup>3</sup>/h, blower (MF50201V1-1B00U-A99 / SUNON)

Manufacturer partno	MF50201V1-1B00U-A99
RoHS	yes
Manufacturer	SUNON
Weight	34g
Operating voltage	4.5...13.8V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	plastic
Current rating	124mA
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Cable length	0.305m
Type of fan	DC
Fan dimensions	50x50x20mm
Power consumption	1.49W
Fan efficiency	9.85m³/h
Noise level	34.8dBA
Rotational rate/speed	5300rpm
Current and power consumption tolerance	±15%
Impeller material	plastic
Fan motor	brushless DC
Additional functions	Autorestart
Kind of fan	blower
Kind of Bearing	Vapo

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.424.04

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 636 Ft
5+	2 369 Ft
10+	2 308 Ft
20+	2 258 Ft
50+	2 192 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 100
