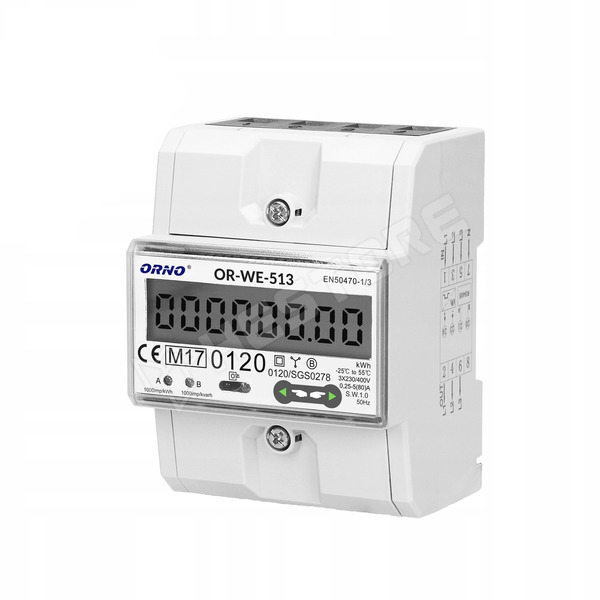

OR-WE-513

3 phase energy meter, IP20, DIN rail, max. 80A

Manufacturer partno	OR-WE-513
Manufacturer	ORNO
Mounting	DIN
Operating temperature	-25...55°C
Body dimensions	72x100x66mm
Current rating	5A
Type of module	drivers
IP rating	IP51
Max. operating current	80A
Power consumption	0.4W
Measuring instrument features	direct measurement, MID certificate
Accuracy class	B
Type of counted signal	electric power
Counting range	999999,99kWh
Controlled parameter	3x230/400V AC 50/60Hz
Kind of display used	LCD
