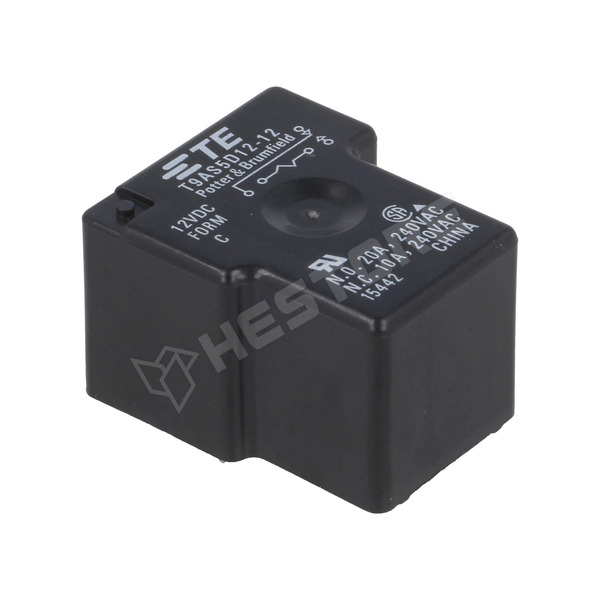

3-1393210-3

Relay, SPDT, 12V DC, 20A / 240V AC, 10A / 28V DC

Manufacturer partno	3-1393210-3
Manufacturer	TE Connectivity
Mounting	PCB
Operating temperature	-55...85°C
Body dimensions	32.5x27.4x27.9mm
Leads	for PCB
Mechanical durability	10000000 cycles
Contact material	AgCdO
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	20A
Switched voltage	max. 277V AC, max. 28V DC
Relay variant	power
Coil resistance	144Ω
Coil voltage min.	9V DC
Coil power consumption	1W
Relay series	T9A
Contact resistance	75mΩ
DC contacts rating @R	10A / 28V DC
AC contacts rating @R	20A / 240V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.420.16

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 963 Ft
5+	1 724 Ft
10+	1 674 Ft
20+	1 635 Ft
50+	1 585 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 250
10-15 workdays	> 200
