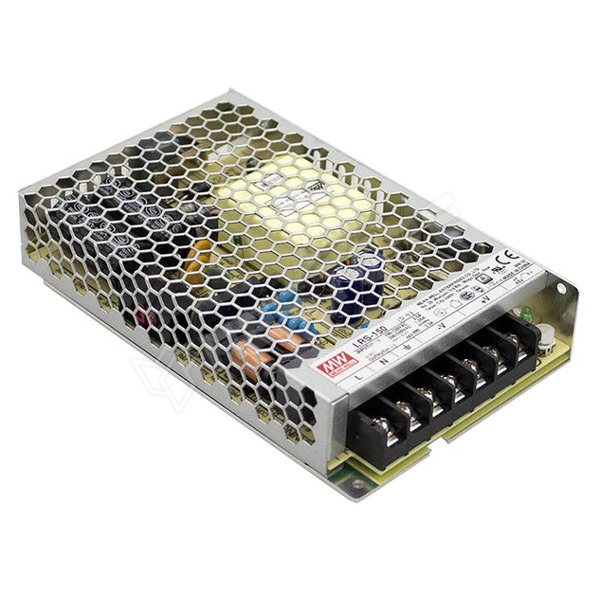

LRS-150-48

Power supply, switched-mode, 43.2...52.8V DC, 48V DC, 3.3A, 158.4W, mounting

Manufacturer partno	LRS-150-48
RoHS	yes
Manufacturer	MEAN WELL
Power	158.4W
Weight	480g
Output voltage	48V DC, 43.2...52.8V DC
Series	LRS-150
Number of terminals	1
Mounting	mounting
Operating temperature	-30...70°C
Body dimensions	159x97x30mm
Supply voltage	85...132 / 170...264V AC, 240...370V DC
Output current	3.3A
Type of power supply	switched-mode
Kind of power supply	modular
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit, overheating
Power supply/converter features	rated parameters obtained at full load, no load power consumption <0,5W, AC input range selectable by switch
Efficiency	90%
Kind of case	241A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.417.89

Add to favorites

Quantity (pcs):

Packing:
30 pcs / carton

Unit price excl. VAT

1+	7 366 Ft
5+	6 904 Ft
10+	6 766 Ft
30+	6 638 Ft
60+	6 456 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 500
