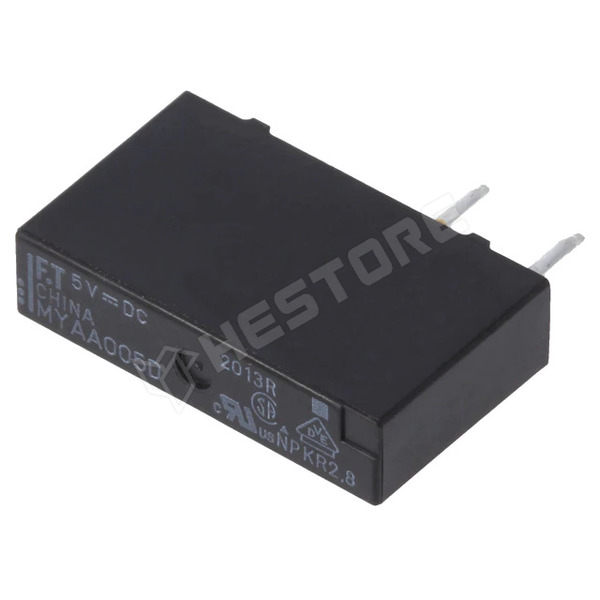

FTR-MYAA005D

Relay, SPST-NO, 5V DC, 5A / 250V AC, 5A / 30V DC

Manufacturer partno	FTR-MYAA005D
Manufacturer	FUJITSU
Mounting	PCB
Terminal pitch	5.08mm
Operating temperature	-40...90°C
Contact material	Ag/Au
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	5A
Switched voltage	max. 277V AC, max. 125V DC
Relay variant	miniature
Coil resistance	230Ω
Relay series	FTR-MY
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.416.30

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	887 Ft
5+	691 Ft
10+	659 Ft
20+	637 Ft
50+	614 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 2000
