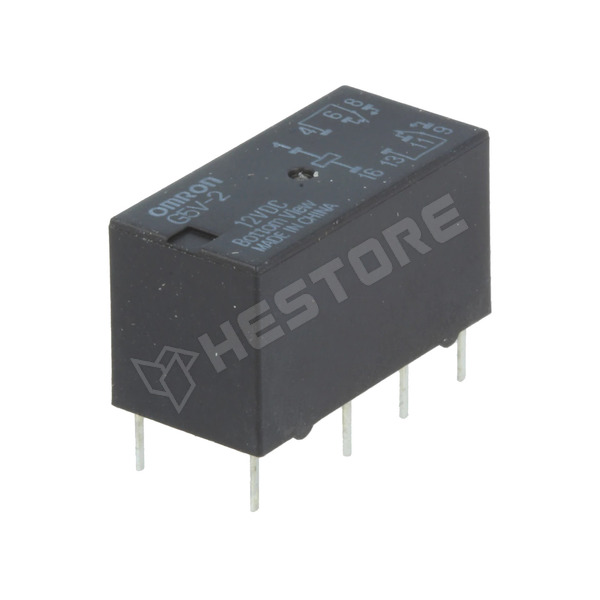

G5V2-12

Relay, DPDT, 12V DC, 0.5A / 125V AC, 2A / 30V DC

Manufacturer partno	G5V-2 12VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-25...70°C
Body dimensions	20.5x10.1x11.5mm
Body dimensions	20.5x10.1x11.5mm
Contact plating	gold-plated
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	2A
Switched voltage	max. 125V DC, max. 125V AC
Relay variant	miniature, miniature
Coil resistance	288Ω
Operate time	7ms
Release time	3ms
Coil power consumption	500mW
Relay series	G5V-2
Contact resistance	50mΩ
Coil current	41.7mA
DC contacts rating @R	2A / 30V DC
AC contacts rating @R	0.5A / 125V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.414.40

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 2.465
5+	€ 1.962
10+	€ 1.877
20+	€ 1.819
50+	€ 1.755

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 5000
