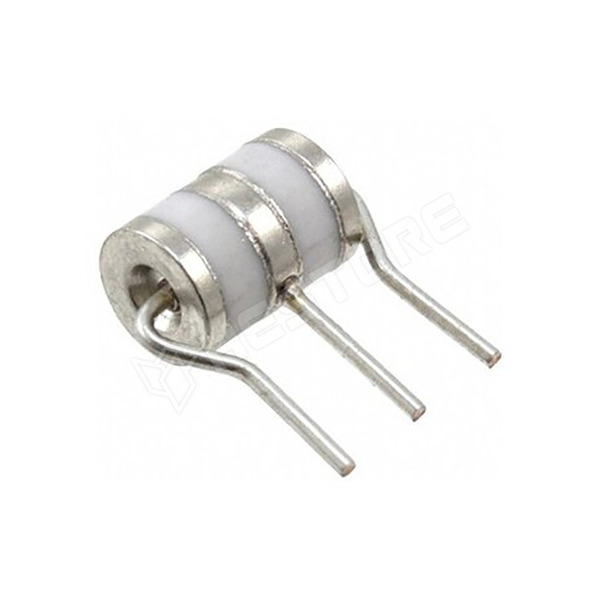

3RM090L-8

Double Gas Discharge Tubes - GDTs / Gas Plasma Arrestors GDT Leaded 3R-8,90V+/-20% 10KA

Manufacturer partno	3RM090L-8
RoHS	yes
Manufacturer	BRIGHTKING TAIWAN
Mounting	THT
Capacitance	1.5pF
Body dimensions	Ø8x10mm
Max. overload voltage	700V
Leads	axial
Min. insulation resistance	10GΩ
Type of surge arrester	surge arrester
Surge arresters application	data transmission systems protection, telecommunication devices protection
Typical spark-over voltage	90V
Impulse discharge current (8/20µs)	20kA
Impulse discharge current AC 50Hz (1 s 10 times)	20A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.414.11

Add to favorites

Quantity (pcs):

Packing:
100 pcs / tray

Unit price excl. VAT

1+	453 Ft
5+	283 Ft
10+	258 Ft
20+	243 Ft
50+	231 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
10-15 workdays	> 3000
