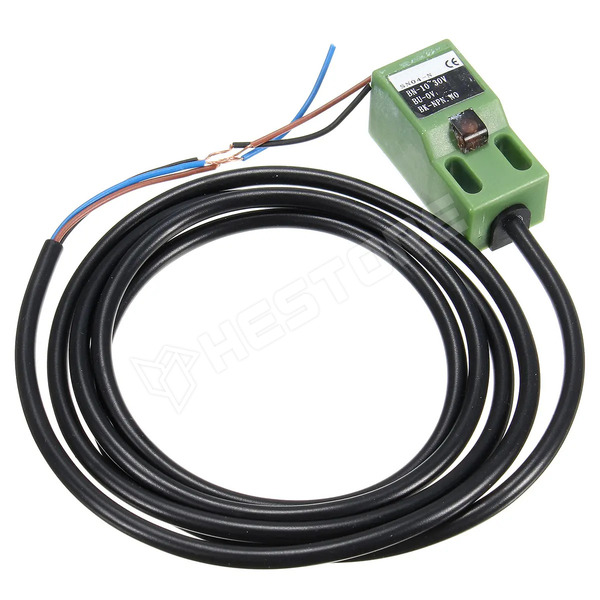

SN04-N

Inductive proximity sensor, NPN

Number of terminals	3 leads
Operating voltage	6...36V
Operating temperature	-25...60°C
Sampling speed	200Hz
Body dimensions	18x18x36mm
Maximum output current	200mA
Output	NPN
Type of sensor	Inductive
Mounting	screw
Mounting hole diameter	3mm
Kind of output	NO
Detection object	metal
Indicator LED	yes
Detecting Distance	0...4mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.413.74

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	$ 6.634 ($ 5.223 +VAT)
5+	$ 5.763 ($ 4.538 +VAT)
10+	$ 5.589 ($ 4.401 +VAT)
20+	$ 5.453 ($ 4.294 +VAT)
50+	$ 5.286 ($ 4.162 +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
10-15 workdays	> 2000
