LJC18A3-H-Z/BY

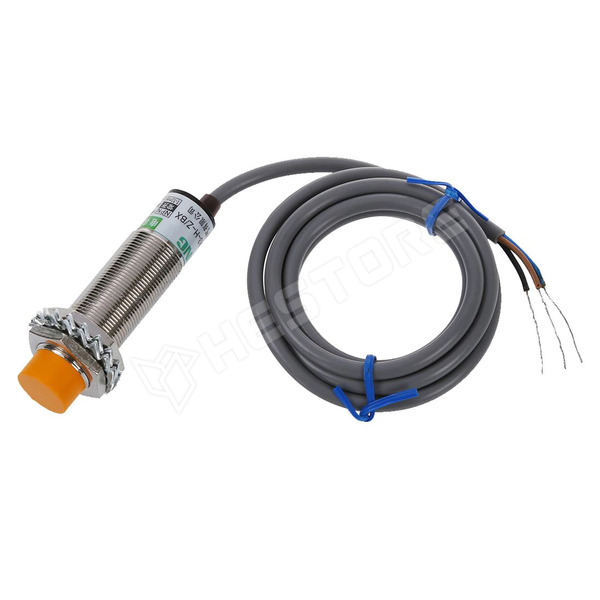

Capacitive proximity sensor, NPN, 8mm

Number of terminals	3 leads
Operating voltage	6...36V
Operating temperature	-25...60°C
Sampling speed	100Hz
Body dimensions	M18x75mm
Maximum output current	300mA
Output	NPN
Type of sensor	variacap
Mounting	female
Mounting hole diameter	18mm
Kind of output	NO
Detection object	Plastic, metal
Indicator LED	yes
Detecting Distance	1...10mm
