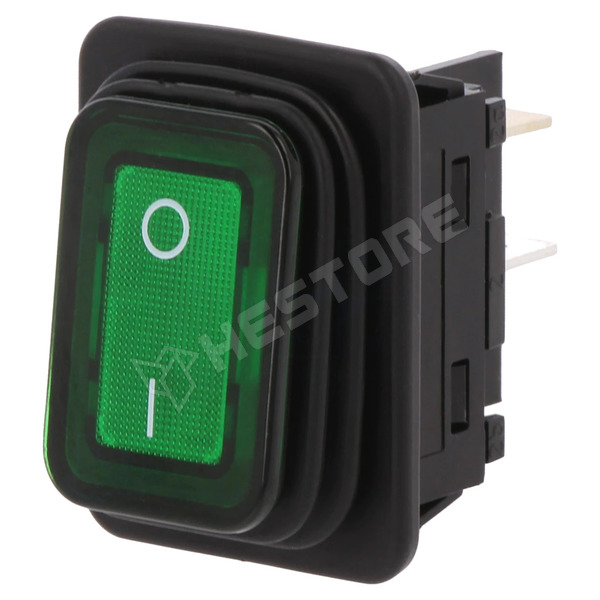

1935.3118

Kapcsoló, ROCKER, DPST, OFF-ON, 20A / 250V AC

Manufacturer partno	1935.3118
RoHS	yes
Manufacturer	Marquardt
Operating temperature	-30...105°C
Body colour	black
Mounting hole diameter	30.2x22mm
Shape	rectangular
Dimensions	36.4x27.8x26.6mm
Leads	6,3x0,8mm connectors
Illumination	filament lamp 230V
IP rating	IP40, IP65 (from the front)
Type of switch	ROCKER
Stable positions number	2
Number of positions	2
Switching method	OFF-ON
Contact material	silver
Contacts configuration	DPST
Max. contact resistance:	100mΩ
Body colour	black
Actuator colour	green
Button marking	I-O
Button shape	rectangular
Manufacturer series	1935
Backlight colour	green
Panel thickness	max. 3mm
AC contacts rating @R	20A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.411.67

Add to favorites

Quantity (pcs):

Packing:
100 pcs / carton

Unit price excl. VAT

1+	2 842 Ft
5+	2 566 Ft
10+	2 502 Ft
20+	2 449 Ft
50+	2 377 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 500
