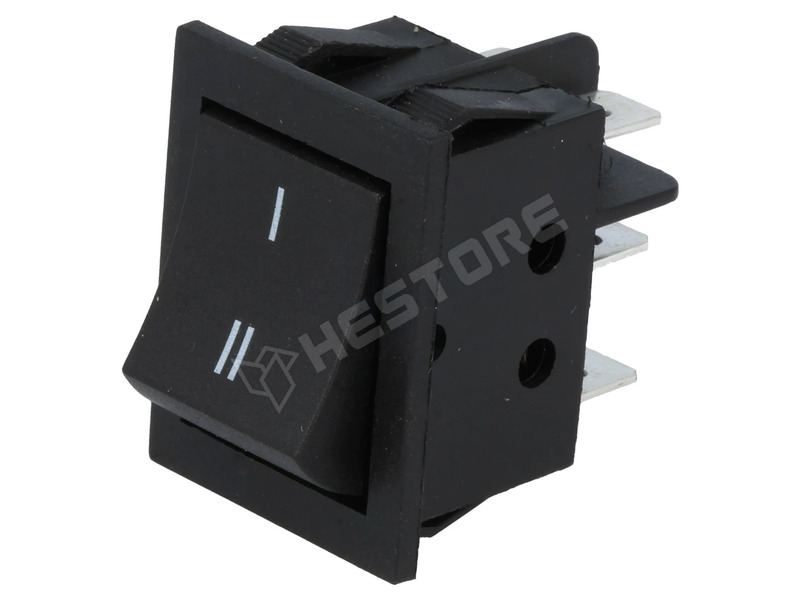

RS2023C7BK

Kapcsoló, ROCKER, DPDT, ON-ON, 15A/250V AC

Manufacturer partno	RS2023C7BK
RoHS	yes
Operating temperature	-30...80°C
Body colour	black
Mounting hole diameter	31x22.3mm
Related items	RSC09
Leads	6,3x0,8mm connectors
Illumination	none
Type of switch	ROCKER
Stable positions number	2
Number of positions	2
Switching method	ON-ON
Contacts configuration	DPDT
Max. contact resistance:	35mΩ
Electrical life	10000 cycles
Actuator colour	black
Button marking	I-II
Button shape	rectangular
AC contacts rating @R	15A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.411.28

Add to favorites

Quantity (pcs):

Packing:
30 pcs / carton

Unit price excl. VAT

1+	1 249 Ft
5+	1 038 Ft
10+	1 000 Ft
30+	973 Ft
60+	941 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
