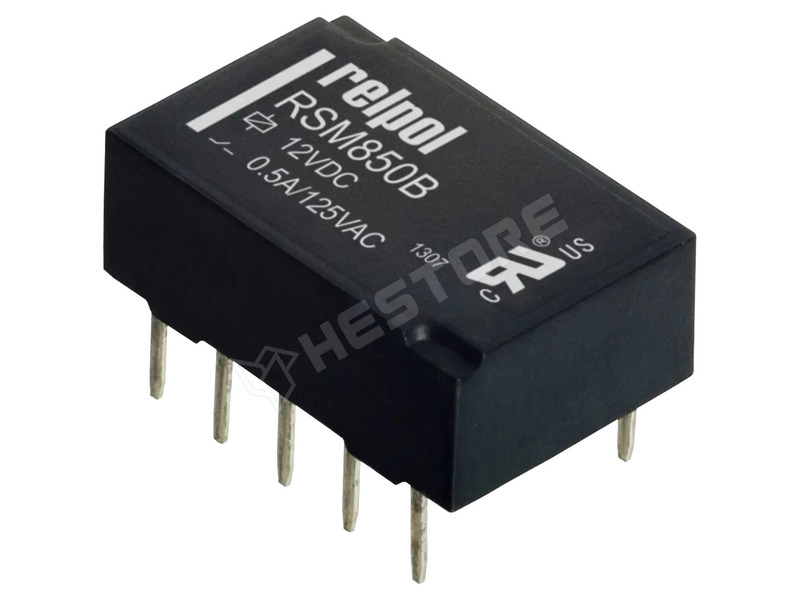

RSM850B-6112-85-1012

Relé, elektromágneses, DPDT, 12V DC

Manufacturer partno	RSM850B-6112-85-1012
RoHS	yes
Manufacturer	RELPOL
Weight	1.5g
Mounting	PCB
Terminal pitch	2.54mm
Operating temperature	-40...70°C
Body dimensions	14.3x9.3x5.4mm
IP rating	IP64
Mechanical durability	100000000 cycles
Contact material	AgPd/Au 0,2μm
Contacts configuration	DPDT
Electrical life	100000 cycles
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	2A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	bistable, subminiature
Coil resistance	1.44kΩ
Coil voltage min.	9V DC
Coil voltage max.	34.8V DC
Coil power consumption	100mW
Relay series	RSM850B
Contact resistance	50mΩ
Relay features	single coil
DC contacts rating @R	2A / 30V DC
AC contacts rating @R	0.5A / 125V AC
OEM number	2611714

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.409.52

Add to favorites

Quantity (pcs):

Packing:
25 pcs / tube

Unit price excl. VAT

1+	1 499 Ft
5+	1 278 Ft
10+	1 236 Ft
25+	1 205 Ft
50+	1 167 Ft
