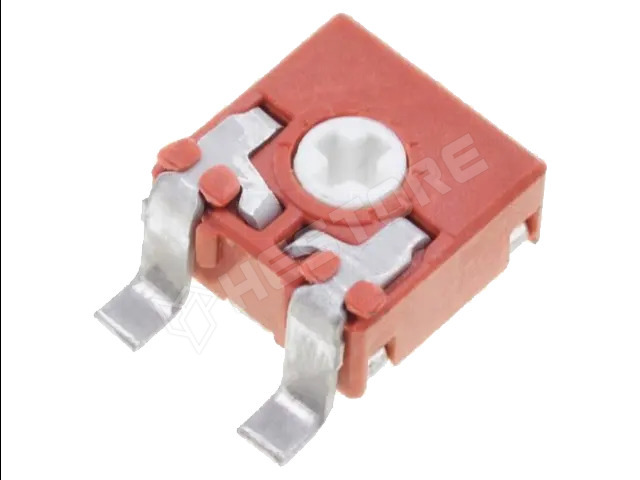

CA6XVSMD-5KA2525

Trimmer potenciométer, 5K

Manufacturer partno	CA6XVSMD-5KA2525
RoHS	yes
Manufacturer	ACP
Power	100mW
Resistance	5kΩ
Characteristics	linear
Torque	<2Ncm
Mounting	SMD
Tolerance	±20%
Kind of package	bag
Operating temperature	-25...70°C
Body dimensions	6.5x6.5x3.6mm
Max. operating voltage	100V DC
Type of potentiometer	mounting
Track material	carbon
Potentiometer standard	6mm
Mechanical durability	1000 cycles
Mechanical rotation angle	235 ±10°
Electrical rotation angle	215 ±20°
Kind of potentiometer	single turn

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.409.02

Add to favorites

Quantity (pcs):

Packing:
500 pcs / bag

Unit price excl. VAT

1+	164 Ft
5+	103 Ft
10+	80,71 Ft
20+	69,17 Ft
50+	61,31 Ft
