XH-M131-12V

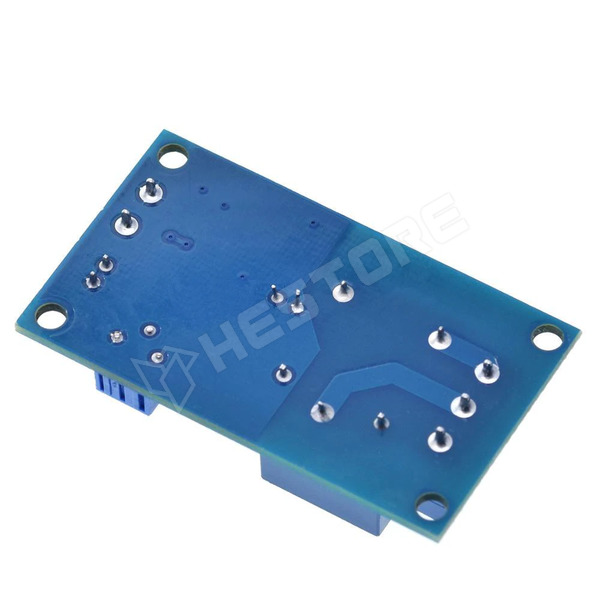

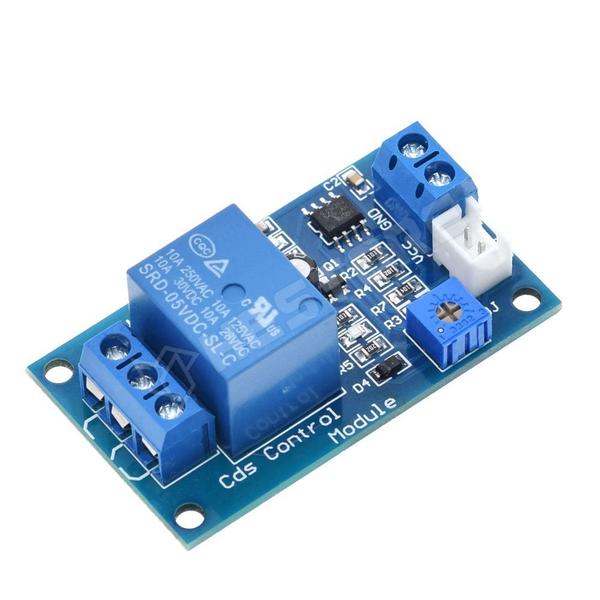

Light control switch module, 12V DC
The switching point can be adjusted to the desired brightness with a potentiometer
Input: 12V DC
Load capacity: 10A / AC up to 250V or DC 30V
Red LED: Indicates power on
Blue LED is lit: The relay is operating

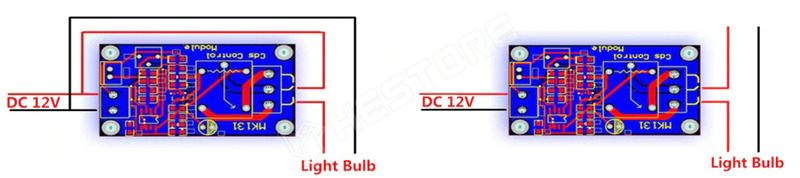

All three relay terminals at the terminal block
Normally open (NO)
Common terminal (COM)
Normally closed (NC)
Size: 30.5 x 53mm height: max.20mm
Input: 12V DC
Load capacity: 10A / AC up to 250V or DC 30V
Red LED: Indicates power on
Blue LED is lit: The relay is operating
All three relay terminals at the terminal block
Normally open (NO)
Common terminal (COM)
Normally closed (NC)
Size: 30.5 x 53mm height: max.20mm
