Main category » Switches, Relays » Encoders »

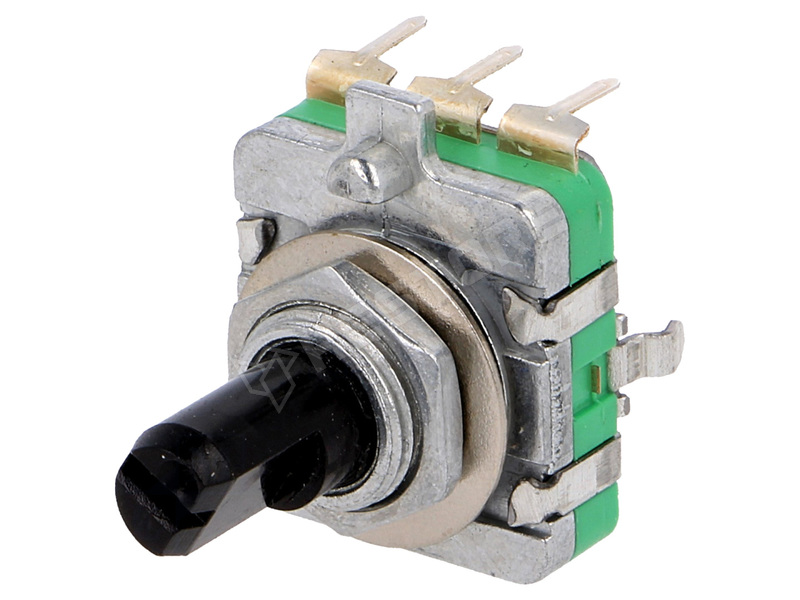

EN16-H20AF15

Rotary encoder 6mm, 24 pulse

Manufacturer partno	EN16-H20AF15
Manufacturer	BI TECHNOLOGIES
Shaft diameter	6mm
Mounting	THT
Operating voltage	5V DC
Operating temperature	-30...85°C
Mechanical durability	30000 cycles
Shaft surface	D spring
Shaft length	10mm
Max. operating current	500µA
Resolution	24imp/revol.
Type of encoder	incremental
Cut depth	1.5mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.403.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	989 Ft
5+	789 Ft
10+	756 Ft
20+	732 Ft
50+	707 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 4000
