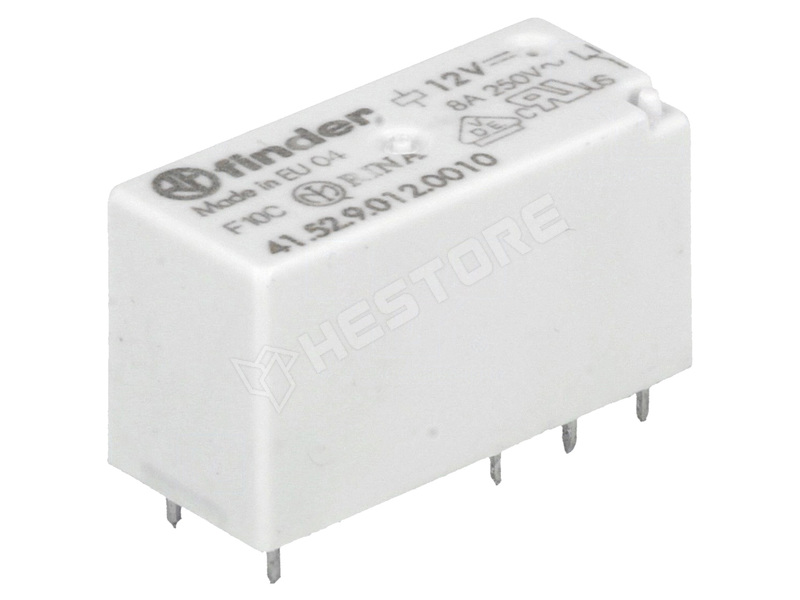

41.52.9.012.0010

Relé, DPDT, 12V DC, 8A

Manufacturer partno	41.52.9.012.001
RoHS	yes
Manufacturer	FINDER
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...85°C
Body dimensions	29x12.5x15.7mm
Mechanical durability	3000000 cycles
Contact material	AgNi
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	15A
Switched voltage	max. 220V DC, max. 400V AC
Relay variant	miniature, miniature
Coil resistance	360Ω
Coil voltage min.	8.4V DC
Coil voltage max.	18V DC
Coil power consumption	400mW
Relay series	41.52
DC contacts rating @R	8A / 30V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.403.24

Add to favorites

Quantity (pcs):

Packing:
20 pcs / tube

Unit price excl. VAT

1+	2 383 Ft
5+	2 126 Ft
10+	2 069 Ft
20+	2 023 Ft
60+	1 964 Ft
