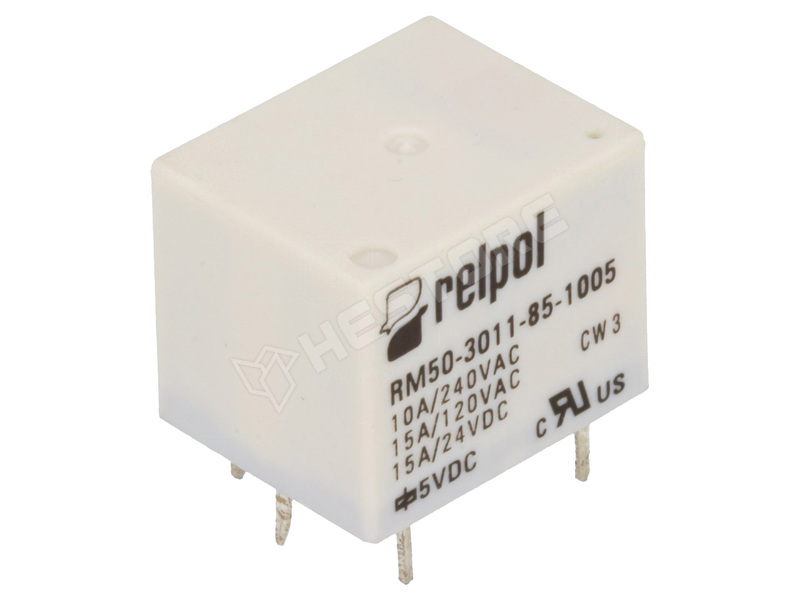

RM50-3011-85-1005

Relé 5V 10A/240V AC SPDT

Manufacturer partno	RM50-3011-85-1005
Manufacturer	RELPOL
Mounting	PCB
Terminal pitch	2mm
Operating temperature	-30...55°C
Body dimensions	19x15.4x15.5mm
IP rating	IP64
Contact material	AgSnO₂
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	15A
Switched voltage	max. 277V AC, max. 24V DC
Relay variant	miniature
Coil resistance	70Ω
Coil voltage min.	3.75V DC
Coil voltage max.	6.5V DC
Coil power consumption	360mW
Relay series	RM50
Contact resistance	100mΩ
DC contacts rating @R	15A / 24V DC
AC contacts rating @R	10A / 240V AC
OEM number	2611652

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.402.83

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 124 Ft
5+	919 Ft
10+	883 Ft
20+	857 Ft
50+	828 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 1000

Any questions?

Alternatives, similar/substitute products

F 36.11.9.005
Relé 5V 10A/250VAC SPDT
