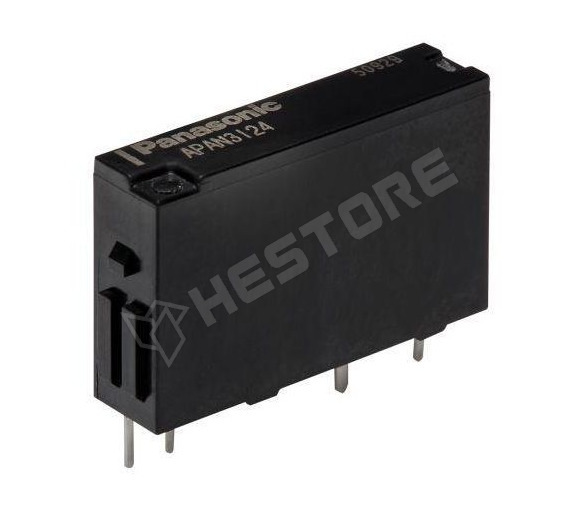

APAN3124

Relay, SPST-NO, 24V DC, 5A / 250V AC, 5A / 30V DC

Manufacturer partno	APAN3124
RoHS	yes
Manufacturer	PANASONIC
Mounting	PCB
Terminal pitch	5.08mm
Operating temperature	-40...90°C
Body dimensions	20x5x12.8mm
Mechanical durability	20000000 cycles
Contact material	AgNi + Au
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	5A
Switched voltage	max. 250V AC, max. 110V DC
Relay variant	miniature, miniature
Coil resistance	5236Ω
Coil voltage min.	16.8V DC
Coil power consumption	110mW
Relay series	PA-N
Contact resistance	30mΩ
Coil current	4.6mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.401.90

Add to favorites

Quantity (pcs):

Packing:
25 pcs / tube

Unit price excl. VAT

1+	4 809 Ft
5+	4 452 Ft
10+	4 356 Ft
25+	4 270 Ft
50+	4 150 Ft
