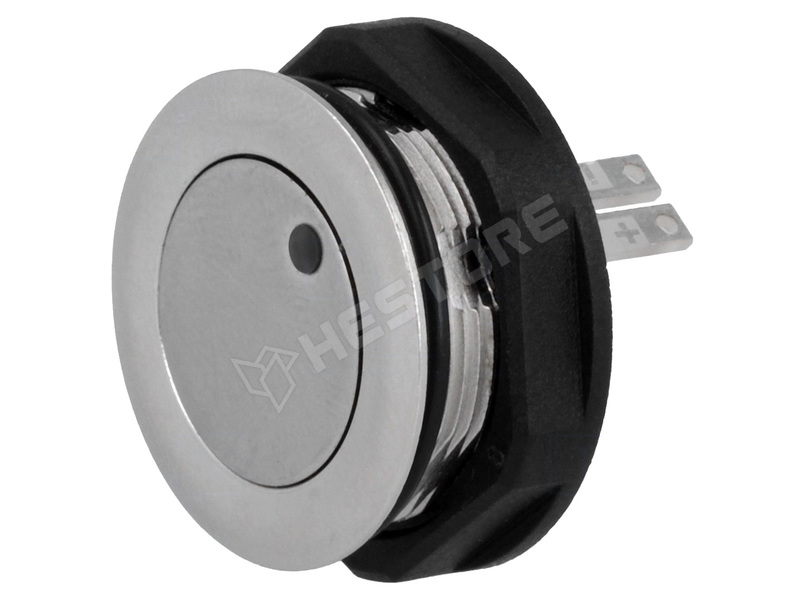

1241.2856

Vandal resistant, OFF-(ON), SPST-NO, 0.125A / 48V DC

Manufacturer partno	1241.2856
RoHS	yes
Manufacturer	SCHURTER
Diameter	21.5mm
Operating temperature	-20...60°C
Body colour	silver
Mounting hole diameter	Ø19mm
Contact plating	silver plated
Leads	for soldering
Illumination	LED, point
IP rating	IP65
Mechanical durability	1000000 cycles
Type of switch	vandal resistant
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Body material	zinc alloy
Contacts configuration	SPST-NO
Operating Force	3.7N
Max. contact resistance:	50mΩ
Body colour	silver
Electrical life	1000000 cycles
Button shape	flat
Manufacturer series	MCS 19
Backlight colour	green
Panel thickness	max. 3mm
Button shape	smooth
Body plating	nickel
Mechanical impact resistance	IK05
DC contacts rating @R	0.125A / 48V DC
Button material	stainless steel

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.401.87

Add to favorites

Quantity (pcs):

Packing:
10 pcs / bag

Unit price excl. VAT

1+	6 446 Ft
5+	6 023 Ft
10+	5 899 Ft
20+	5 787 Ft
50+	5 627 Ft
