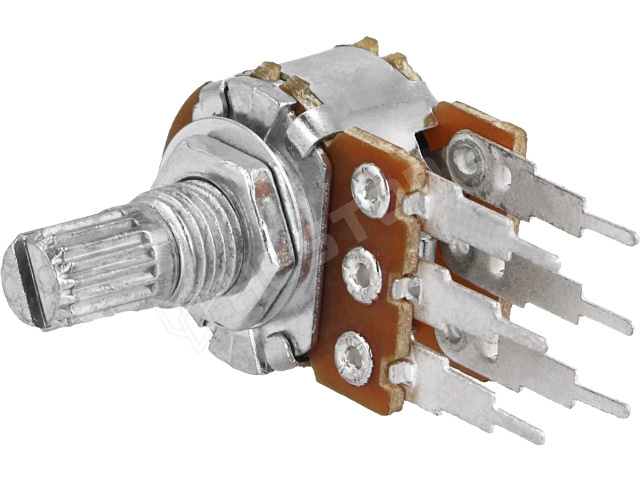

R16148-1B-3-B5K

Potenciométer, lineáris tandem, 9mm

Manufacturer partno	R16148-1B-3-B5K
RoHS	yes
Manufacturer	SR PASSIVES
Power	125mW
Resistance	5kΩ
Characteristics	linear
Shaft diameter	6mm
Mounting	THT
Tolerance	±20%
Terminal pitch	5mm
Body dimensions	Ø17x11mm
Max. operating voltage	200V
Leads	for PCB
Type of potentiometer	axial, shaft
Track material	carbon
Shaft surface	knurled
Shaft length	9mm
Thread length	6mm
Mechanical rotation angle	300°
Potentiometer features	stereo
Poles number	2
Body material	metal
Cable length	11mm
Panel cutout diameter	7.2mm
Lead length	11mm
Kind of potentiometer	single turn
L shaft length	15mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.398.91

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	474 Ft
5+	326 Ft
10+	304 Ft
20+	290 Ft
50+	277 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
