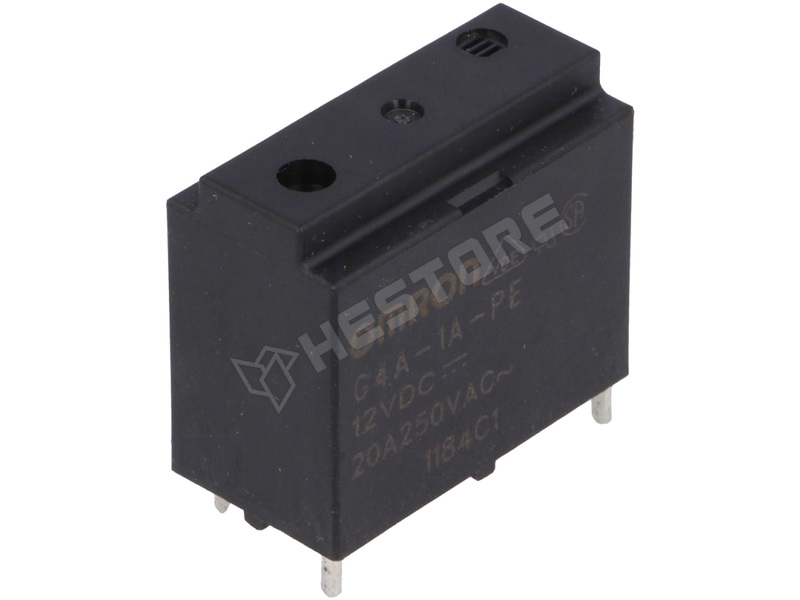

G4A-1A-PE 12VDC

Relé 12V DC / 20A

Manufacturer partno	G4A-1A-PE 12VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Operating temperature	-20...60°C
Body dimensions	30.5x16x26.8mm
Body dimensions	30.5x16x26.8mm
Leads	for PCB
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	20A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	power
Coil resistance	160Ω
Coil power consumption	900mW
Relay series	G4A
Contact resistance	100mΩ
Coil current	75mA
DC contacts rating @R	15A / 30V DC
AC contacts rating @R	20A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.398.85

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 461 Ft
5+	1 242 Ft
10+	1 200 Ft
20+	1 169 Ft
50+	1 132 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 500
