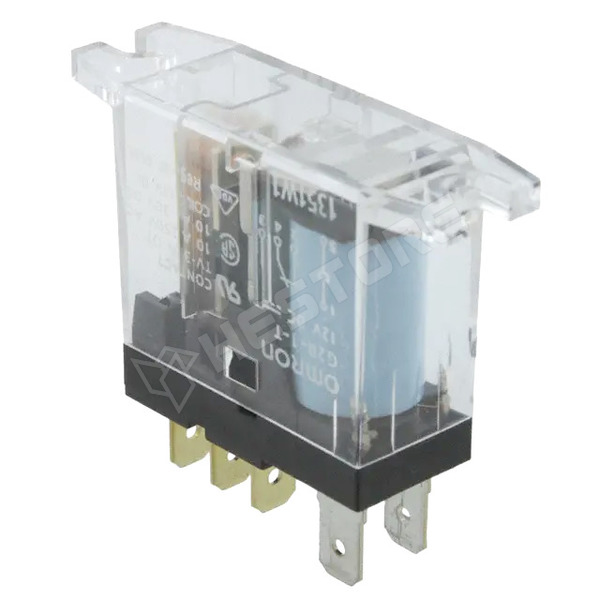

G2R-1-T 240VAC

Relay, SPDT, 240V AC, 10A / 250V AC, 10A / 30V DC

Manufacturer partno	G2R-1-T 240VAC
Manufacturer	OMRON OCB
Mounting	screw type
Terminal pitch	5.2mm
Operating temperature	-40...70°C
Body dimensions	29x13x25.5mm
Leads	4,75x0,5mm connectors
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	240V AC
Contact current max.	10A
Switched voltage	max. 125V DC, max. 380V AC
Relay variant	monostable, miniature
Coil resistance	20.2kΩ
Operate time	15ms
Release time	10ms
Relay series	G2R
Contact resistance	30mΩ
Coil current	5.5mA
Enclosure description	standard seal
DC contacts rating @R	10A / 30V DC
AC contacts rating @R	10A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.398.65

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	8 725 Ft
5+	8 208 Ft
10+	8 047 Ft
20+	7 897 Ft
50+	7 682 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 250
