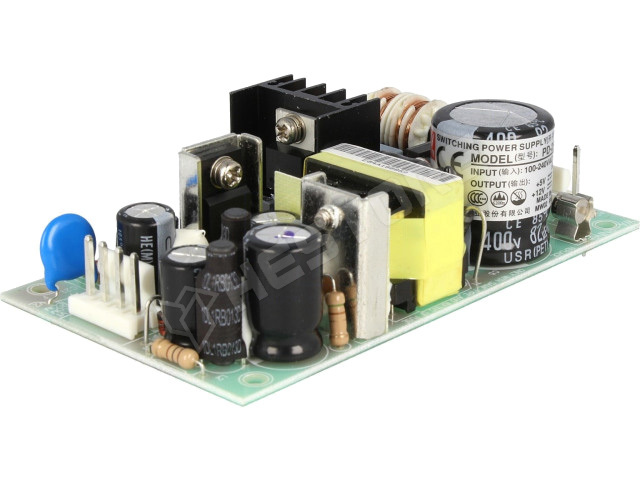

PD-25A

Switching power supply, 230V, 25W / 5V DC

Manufacturer partno	PD-25A
RoHS	yes
Manufacturer	MEAN WELL
Power	25W
Weight	150g
Output voltage	5V DC
Series	PD-25
Number of terminals	2
Mounting	mounting
Operating temperature	-10...60°C
Body dimensions	107x61x28mm
Supply voltage	120...370V DC, 90...264V AC
Output current	2.1 (0.2...2.5)A
Type of power supply	switched-mode
Kind of power supply	open
Electrical connection	plug with 3,96mm pitch
Protection	overload, voltage growth, short-circuit, overheating
Number of outputs	2
Power supply/converter features	multi output power supply - for operating properly, each channel must be loaded within specified range
Efficiency	71%
Output voltage 2	12V DC
Output current 2	1.2 (0.1...1.5)A
