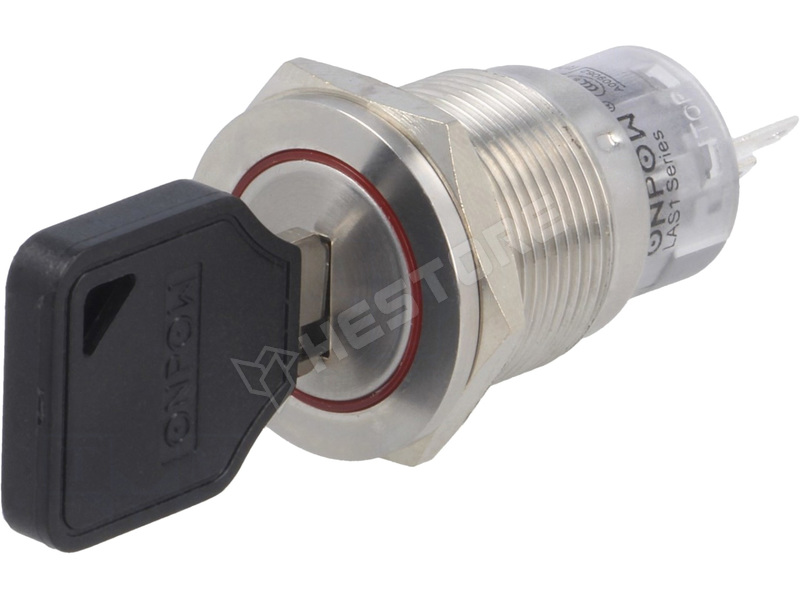

V19-KEY-P-23-S

Key switch ON-(ON)

RoHS	yes
Manufacturer	ONPOW
Number of terminals	3
Operating temperature	-20...55°C
Body colour	silver
Mounting hole diameter	Ø19mm
Leads	NO / Normal Open, NC / Normal Close, Common
Illumination	none
IP rating	IP40
Mechanical durability	200000 cycles
Mechanical rotation angle	90°
Test voltage	2kV
Type of switch	key switch
Stable positions number	1-position
Number of positions	2
Switching method	ON-(ON)
Contact material	silver alloy
Body material	stainless steel
Contacts configuration	SPDT
Switches features	the key can be removed at any position
Max. contact resistance:	50mΩ
Body colour	silver
Electrical life	50000 cycles
Backlight colour	none
Kind of wrench	symmetrical
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 220V AC
Key shape	flat, smooth
Ring shape	flat, smooth
