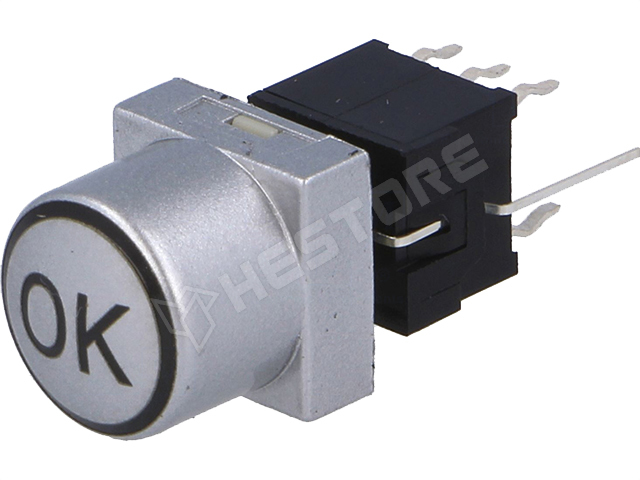

PB61302BL-3-108

Microswitch

Manufacturer partno	PB61302BL-3-108
Manufacturer	HIGHLY
Mounting	THT
Terminal pitch	2.54x5.08mm
Operating temperature	-10...80°C
Body dimensions	10x10mm
Leads	straight, for PCB
Illumination	LED
Min. insulation resistance	100MΩ
Type of switch	keypad
Stable positions number	1-position
Number of positions	2
Switching method	ON-(ON)
Contacts configuration	DPDT
Operating Force	1.5N
Max. contact resistance:	50mΩ
Electrical life	10000cycles
Actuator colour	silver
Button marking	arrow
Button height	19.8mm
Button shape	round
Manufacturer series	PB613
Backlight colour	green
DC contacts rating @R	0.1A / 30V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.395.63

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	801 Ft
5+	609 Ft
10+	579 Ft
20+	558 Ft
50+	538 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 200
