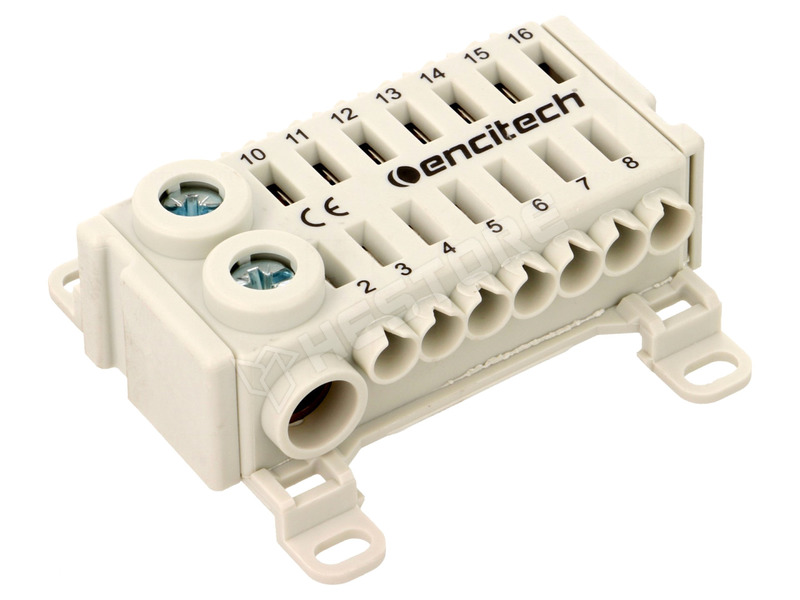

EST142F-GREY

Terminal block, distribution block, Number of ways: 1, Number of terminals: 16

Manufacturer partno	900-97-300100-59
Manufacturer	ENCITECH
Colour	grey
Length	32.7mm
Number of terminals	16
Electrical mounting	screw terminal, spring clamp
Mechanical mounting	screw, for DIN rail mounting
Width	58mm
Rated voltage	690V
Current rating	76A
Number of ways	1
Body material	polyamide
Height	23.8mm
Type of splice terminal	distribution block
Mounting rail size	TS35
Wire cross-section 1	1.5...25mm²
Wire cross-section 2	0.5...4mm²
