STUP-5.0

Name: STUP-5.0
Brand: HESTORE
SKU: 100.394.26
Availability: InStock

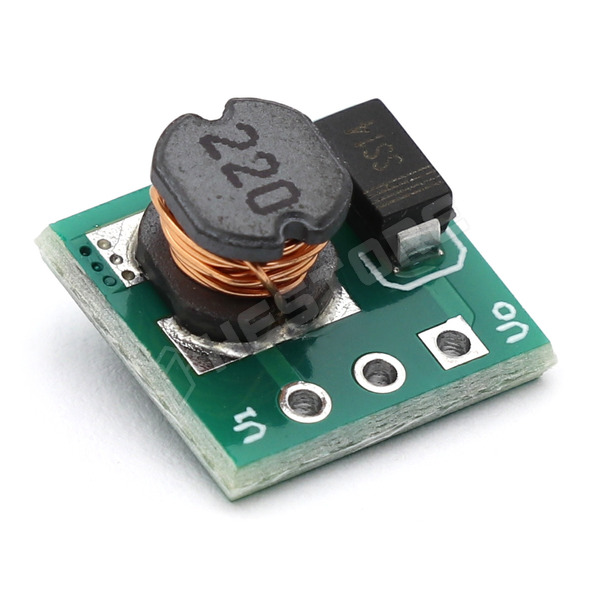

Switching step-up converter, 0.8-3.3V/5.0V

Input voltage: 0.8 ~ 3.3V,
Output 5.0V
Maximum output current: 500 mA,
Input 0.8V: output current max. 10mA
INPUT 1-1.5V: output current max. 50-110mA
INPUT 1.5-2V: output current max. 110-160mA
INPUT 2-3V: output current max. 160-400mA
INPUT above 3V: output current max. 400-500mA
DC-DC Boost module working frequency 150KHz
Without pin header

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.394.26

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	208 Ft
5+	130 Ft
10+	107 Ft
20+	95,38 Ft
50+	86,83 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
10-15 workdays	> 2000
