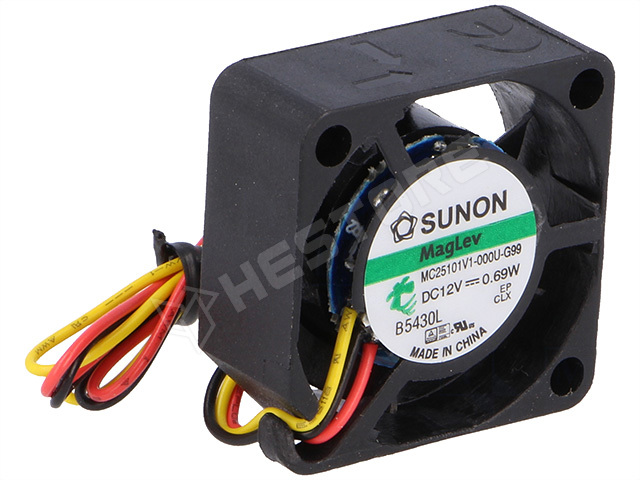

MF25101V1-000U-G99

Fan, DC, 12V DC, 25x25x10mm, Vapo, 5.95m³/h, shaft, axial

MF25101V1-000U-G99 / Fan, DC, 12V DC, 25x25x10mm, Vapo, 5.95m<sup>3</sup>/h, shaft, axial (MF25101V1-1000U-G99 / SUNON)

Manufacturer partno	MF25101V1-1000U-G99
RoHS	yes
Manufacturer	SUNON
Weight	7.5g
Operating voltage	4.5...13.8V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	thermoplastic
Current rating	57mA
Leads	3 leads
Min. insulation resistance	500MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	28AWG
Cable length	150mm
Type of fan	DC
Fan dimensions	25x25x10mm
Power consumption	690mW
Fan efficiency	5.95m³/h
Noise level	23dBA
Rotational rate/speed	13000 (±20%)rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	6.3mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Signal output	F type
Kind of fan	axial, shaft
Kind of Bearing	Vapo

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.394.24

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 886 Ft
5+	2 608 Ft
10+	2 543 Ft
20+	2 489 Ft
50+	2 417 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 500
