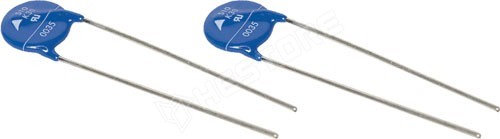

SVAR10-275

Varistor, metal-oxide, 275V AC, 350V DC, 430V, 2.5kA, 66J

RoHS	yes
Power	400mW
Mounting	THT
Terminal pitch	7.5mm
Max. operating voltage	275V AC, 350V DC
Leads dimensions	Ø0.8x25mm
Type of varistor	metal-oxide
Varistor voltage	430V
Varistor voltage tolerance	±10%
Varistor max current 8/20µs	2.5kA
Max body dimensions	Ø12.5mm
Energy E10/1000µs	66J

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.393.50

Add to favorites

Quantity (pcs):

Packing:
500 pcs / bag

Unit price excl. VAT

1+	94,25 Ft
5+	58,90 Ft
10+	37,62 Ft
20+	26,83 Ft
50+	20,09 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
3 workdays	> 25000
