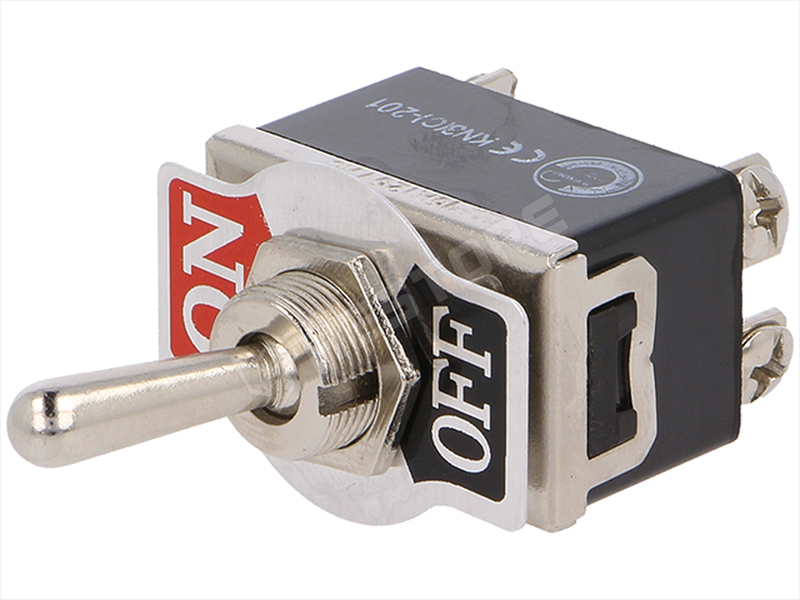

KN3(C)201AA1

Kapcsoló OFF-ON 10A/250V AC

Manufacturer partno	KN3(C)201AA1
RoHS	yes
Operating temperature	-25...85°C
Body dimensions	32.2x19.8x19mm
Mounting hole diameter	Ø12.2mm
Related items	TSPC02
Leads	M3 screws
Type of switch	toggle
Stable positions number	2-position
Number of positions	2
Switching method	OFF-ON
Contacts configuration	DPST
Max. contact resistance:	50mΩ
Knob height	17.5mm
Knob height	17.5mm
Electrical life	10000cycles
AC contacts rating @R	10A / 250VAC
Kind of toggle	round, round

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.392.66

Add to favorites

Quantity (pcs):

Packing:
50 pcs / carton

Unit price excl. VAT

1+	690 Ft
5+	502 Ft
10+	473 Ft
20+	455 Ft
50+	437 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 1000

Any questions?

Alternatives, similar/substitute products

KN3(C)202AA2
Switch, rocker, 2 stable positions, DPDT, ON-ON, 10A/250V AC, M3 screws
