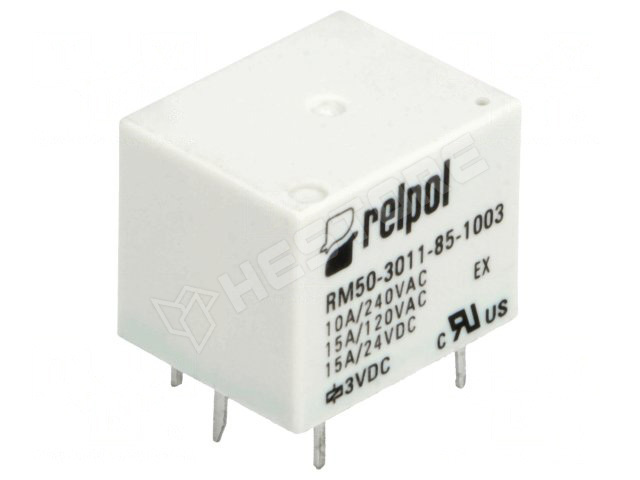

RM50-3011-85-1003

Relé, elektromágneses, 3V DC, 10A/240VAC, 15A/24VDC

Manufacturer partno	RM50-3011-85-1003
Manufacturer	RELPOL
Mounting	PCB
Terminal pitch	2mm
Operating temperature	-30...55°C
Body dimensions	19 x 15.4 x 15.5mm
IP rating	IP64
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	3V DC
Contact current max.	15A
Switched voltage	max 24V DC, max 277V AC
Relay variant	miniature
Coil resistance	25Ω
Coil voltage min.	2.25V DC
Coil voltage max.	3.9V DC
Operate time	10ms
Release time	5ms
Coil power consumption	360mW
Relay series	RM50
Contact resistance	100mΩ
DC contacts rating @R	15A / 24V DC
AC contacts rating @R	10A / 240V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.391.64

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 3.179
5+	$ 2.578
10+	$ 2.474
20+	$ 2.401
50+	$ 2.319

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 50
