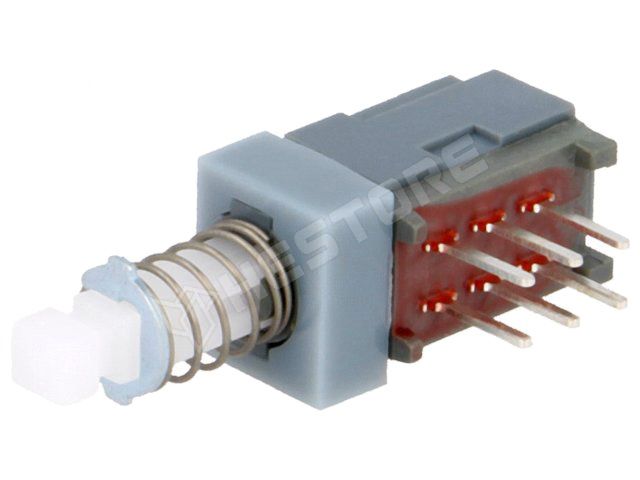

PS909L-22

Kapcsoló, nyomó, NYÁK-ra, 0,1A/30VDC

Manufacturer partno	PS909L-22
Manufacturer	CANAL ELECTRONIC
Mounting	THT
Terminal pitch	2.5x2.5mm
Operating temperature	-10...60°C
Body dimensions	8x9mm
Related items	AP22909-BC, AP22909-BR, AP22909-GR, AP22909-WC
Leads	straight, for PCB, NYÁK-ra, egyenes
Min. insulation resistance	100MΩ
Mechanical durability	30000cycles
Type of switch	push-button
Stable positions number	2-position
Switching method	ON-ON
Contacts configuration	DPDT
Soldering temperature	250°C / 3 s
Operating Force	1N
Max. contact resistance:	50mΩ
Electrical life	10000cycles
Button height	10.8mm
Button shape	square
DC contacts rating @R	0.1A / 30V DC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.389.61

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	363 Ft
5+	227 Ft
10+	202 Ft
20+	189 Ft
50+	178 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 25
