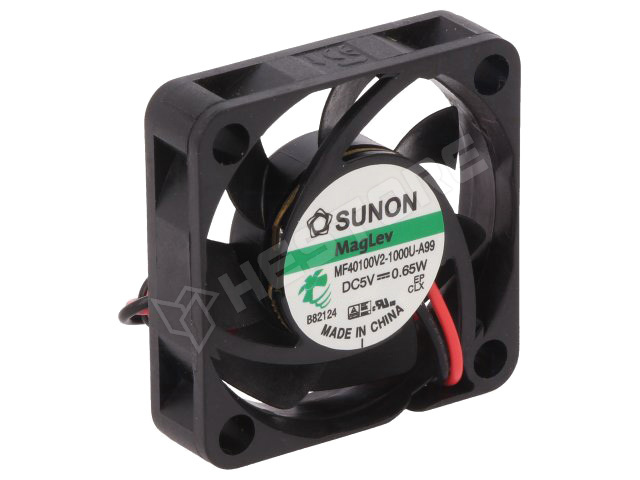

MF40100V2-A99

Fan, DC, 5V DC, 40x40x10mm, Vapo, 11.89m3/h, shaft

Manufacturer partno	MF40100V21000UA99
RoHS	yes
Manufacturer	SUNON
Size	40x40x10
Weight	15.6g
Operating voltage	3.5...6V
Operating temperature	-10...70°C
Supply voltage	5V DC
Enclosure material	thermoplastic
Current rating	0.94A
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	26AWG
Cable length	300mm
Type of fan	DC
Fan dimensions	40x40x10mm
Power consumption	0.47W
Fan efficiency	11.89m3/h, 11.89m³/h
Noise level	20.6dBA
Bearing type	Vapo
Rotational rate/speed	5800rpm
Impeller material	thermoplastic
Static pressure	3.05mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Kind of fan	shaft
Kind of Bearing	Vapo
