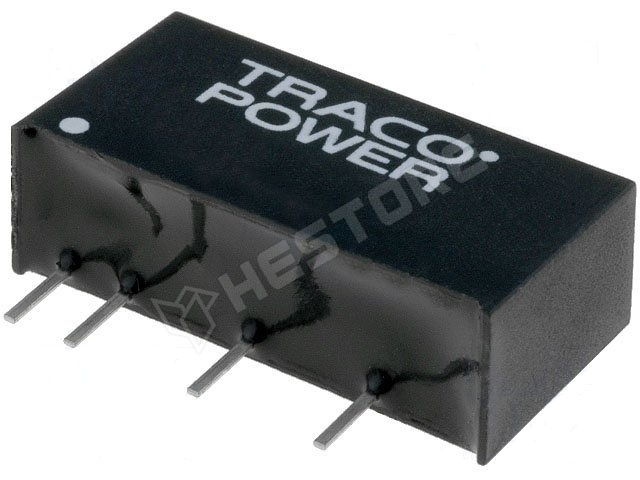

TMA1205D

DC/DC converter

Manufacturer partno	TMA1205D
Manufacturer	TRACO POWER
Case	SIP
Power	1W
Weight	2.6g
Output voltage	5V DC
Input voltage	10.8...13.2V DC, 10.8...13.2V
Series	TMA
Series	TMA
Operating temperature	-40...85°C
Body dimensions	19.5 x 10.2 x 6.1mm
Output current	100mA
Protection	short-circuit
Number of outputs	2
Body dimensions	19.5 x 10.2 x 6.1mm
Efficiency	74%
Insulation voltage	1000V
Output voltage 2	-5V DC
Output current 2	-100mA
Type of converter	DC/DC
Switching frequency	100kHz

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.388.05

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 190 Ft
5+	1 941 Ft
10+	1 888 Ft
20+	1 845 Ft
50+	1 790 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 250
