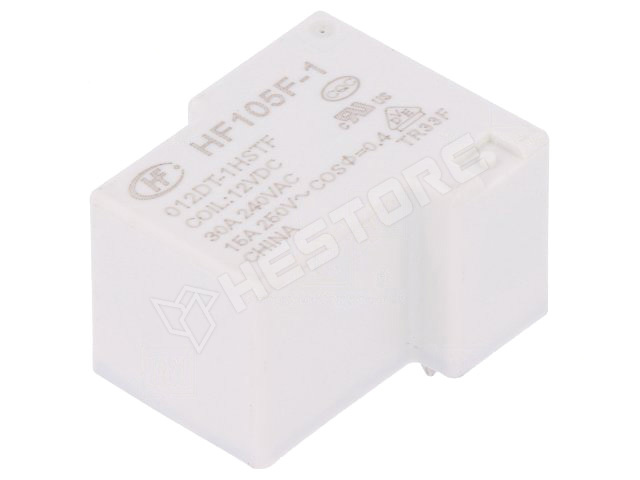

HF105F-1/012DT-1HSTF

Relay, SPST-NO, 12V DC, 30A / 240V AC, 20 A / 28 VDC

Manufacturer partno	HF105F-1/012DT-1HSTF
RoHS	yes
Manufacturer	HONGFA RELAY
Weight	36g
Mounting	PCB
Operating temperature	-55...85°C
Body dimensions	32.3 x 27.1 x 20mm
Mechanical durability	10000000 cycles
Contact material	AgSnO₂
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	40A
Switched voltage	max 277V AC, max 28V DC, max 277V AC, max 28V DC
Relay variant	power
Coil resistance	155Ω
Coil voltage min.	9V DC
Operate time	15ms
Release time	10ms
Coil power consumption	900mW
Contact resistance	50mΩ
Switching capacity	7.2kVA, 560W, 7.2kVA, 560W
DC contacts rating @R	20 A / 28 VDC, 20A / 28V DC
AC contacts rating @R	30A / 240V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.386.72

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	910 Ft
5+	714 Ft
10+	681 Ft
20+	659 Ft
50+	636 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
