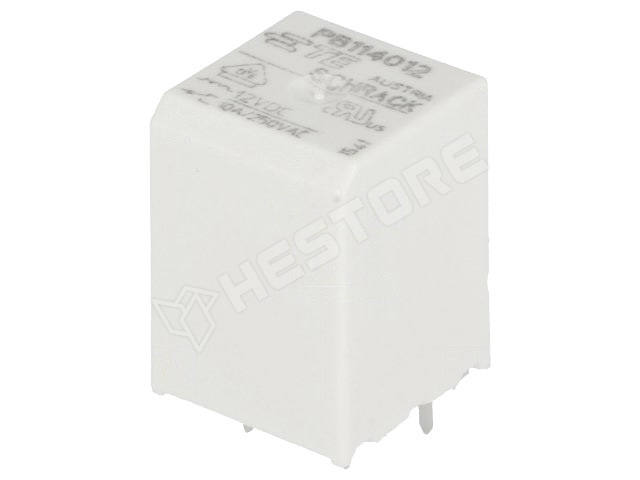

8-1415029-1

Elektromágneses relé 12VDC

Manufacturer	TE Connectivity
Weight	5.4g
Mounting	PCB
Operating temperature	-40...85°C
Body dimensions	20 x 15 x 15mm
Mechanical durability	30000cycles
Contact material	AgNi 90/10
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	10A
Switched voltage	max 400V AC
Relay variant	miniature
Coil resistance	400Ω
Operate time	10ms
Release time	20ms
Coil power consumption	360mW
Relay series	PB
Coil current	30mA
AC contacts rating @R	10A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.385.97

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	965 Ft (760 Ft +VAT)
5+	723 Ft (569 Ft +VAT)
10+	685 Ft (539 Ft +VAT)
20+	660 Ft (519 Ft +VAT)
50+	635 Ft (500 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 1000
