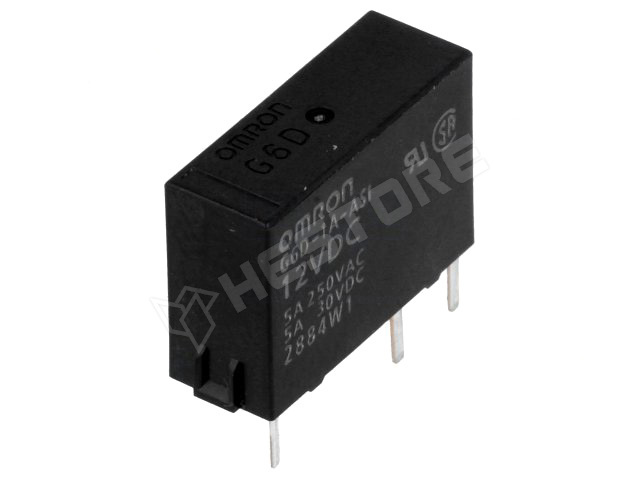

G6D-1A-ASI 12VDC

Relé, elektromágneses, 12VDC; 5A/250VAC

RoHS	yes
Manufacturer	OMRON
Mounting	PCB, socket, PCB, foglalat
Terminal pitch	5.08mm
Operating temperature	-25...70°C
Body dimensions	17.5 x 6.5 x 12.5mm
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	5A
Switched voltage	max 250V AC, max 30V DC, max 250V AC, max 30V DC
Relay variant	miniature
Coil resistance	720Ω
Operate time	10ms
Release time	5ms
Coil power consumption	200mW
Relay series	G6D
Contact resistance	100mΩ
Coil current	16.7mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.385.92

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 099 Ft
5+	895 Ft
10+	859 Ft
20+	834 Ft
50+	806 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 1000
