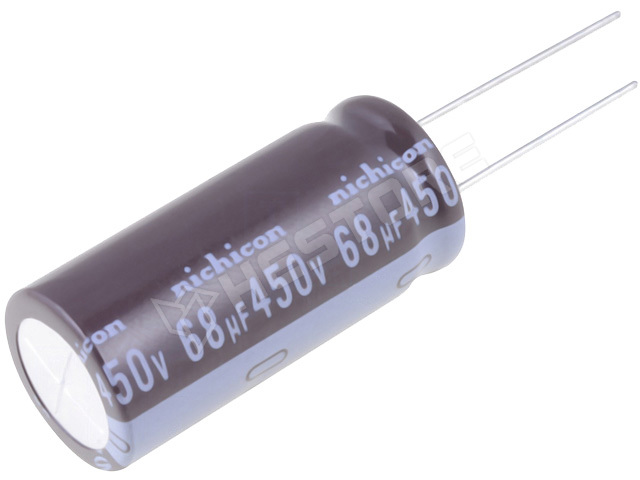

68uF / 450V DC

Capacitor, electrolytic, 68µF, 450V, 7.5mm, long life, high reliability, Ø16 x 35.5mm, -25...105°C

Manufacturer partno	UCY2W680MHD
RoHS	yes
Manufacturer	NICHICON
Case	RM7.5
Mounting	THT
Tolerance	±20%
Type of capacitor	electrolytic
Capacitance	68µF
Operating voltage	450V, 450V DC
Terminal pitch	7.5mm
Operating temperature	-25...105°C
Body dimensions	Ø16 x 35.5mm, Ø16x35.5mm
Service life	12000h
Capacitors features	long life, high reliability
Max. operating current	660mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.383.05

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	2 459 Ft (1 936 Ft +VAT)
5+	2 155 Ft (1 697 Ft +VAT)
10+	2 093 Ft (1 648 Ft +VAT)
20+	2 044 Ft (1 609 Ft +VAT)
50+	1 982 Ft (1 560 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 150
