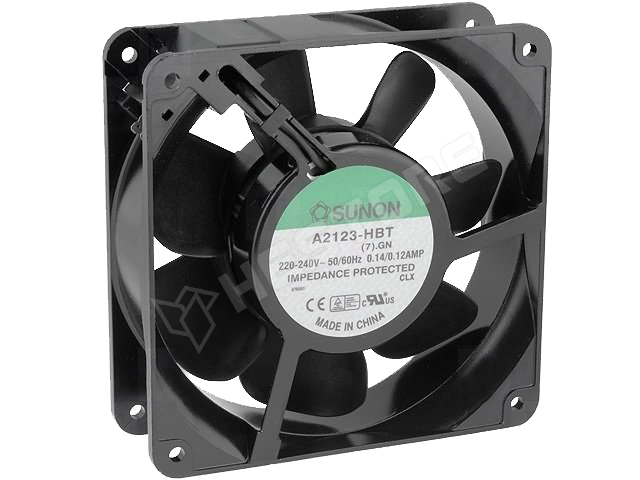

A2123HBT.(7).GN

Fan, AC, 230V AC, 120x120x38mm, ball bearing, 210 (±10%)m3/h, shaft

Manufacturer partno	A2123HBT.(7).GN
RoHS	yes
Manufacturer	SUNON
Frequency	50Hz
Weight	525g
Operating temperature	-10...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	140mA
Leads	2.8x0.3mm connectors, 2,8x0,3mm connectors
Min. insulation resistance	500MΩ
IP rating	B
Flammability rating	UL94V-0
Type of fan	AC
Fan kind	shaft
Fan dimensions	120x120x38mm
Power consumption	22W
Fan efficiency	210 (±10%)m3/h, 210 (±10%)m³/h
Noise level	47dBA
Bearing type	ball bearing
Rotational rate/speed	2700rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	7.62mm H₂O
Kind of fan	shaft
Kind of Bearing	ball bearing
