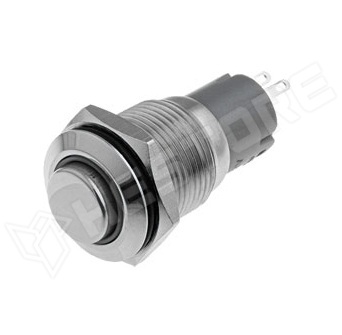

V16-11HR-12G-S IP67

Vandal resistant switch ON-(ON)

RoHS	yes
Manufacturer	ONPOW
Operating temperature	-20...55°C
Leads	for soldering
Illumination	LED 12V AC/DC, ring
IP rating	IP67
Mechanical durability	200000 cycles
Test voltage	2kV
Type of switch	vandal resistant
Stable positions number	1-position
DC contacts rating	1 A / 24 VDC
Switching method	ON-(ON)
Contact material	silver alloy
Body material	stainless steel
Contacts configuration	SPDT
Mounting hole diameter	Ø16mm
AC contacts rating	0.5 A / 220 VAC
Operating Force	4N
Max. contact resistance:	50mΩ
Body colour	silver
Electrical life	50000 cycles
Backlight colour	green
Button shape	prominent
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 220V AC
Összes pozíciók száma	2
Light	LED 12V AC/DC, ring
Korpusz anyaga	stainless steel
Ring shape	rounded

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.381.41

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 6.945
5+	€ 6.258
10+	€ 6.099
20+	€ 5.968
50+	€ 5.794
