DSN-1504-3A

Name: DSN-1504-3A
Brand: HESTORE
SKU: 100.381.18
Availability: InStock

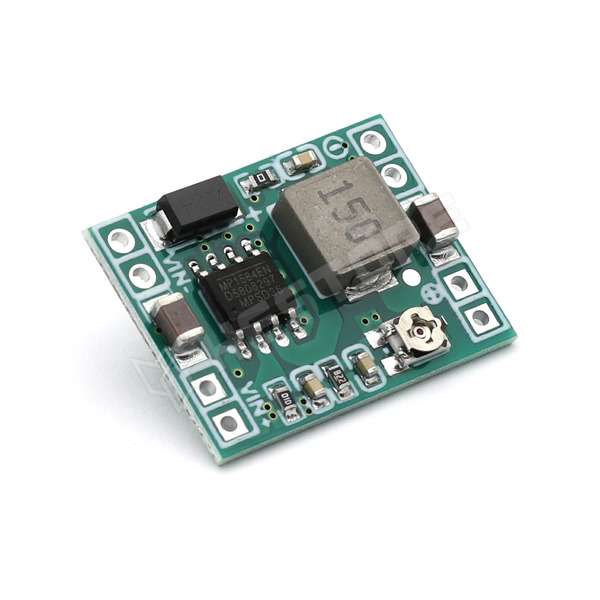

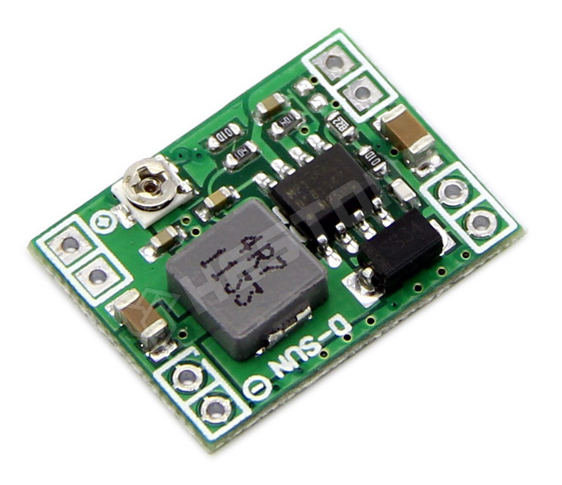

Switching step-down converter module, 4.5-20V/0.8-18V, max. 3A, max. 12W

Switching frequency: 1MHz
Output ripple: less than 30mV
Efficiency: 96%(max)
Size: 22x17x4 mm

Manufacturer partno	DSN-1504-3A / MP1584EN (HW-133ABC)
Power	12W
Output voltage	0.8...18V DC
Input voltage	4.5...20V DC
Output current [max.]	3A
Type of power supply	switched-mode
Kind of power supply	adjustable
Number of outputs	1

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Related, recommended articles

Step-down, step-up, buck, boost, charge pump - melyik micsoda, hogyan válasszunk megfelelő modult a HESTORE kínálatából

Part.No: 100.381.18

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	335 Ft
5+	209 Ft
10+	184 Ft
20+	174 Ft
50+	167 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 500
10-15 workdays	> 10000
