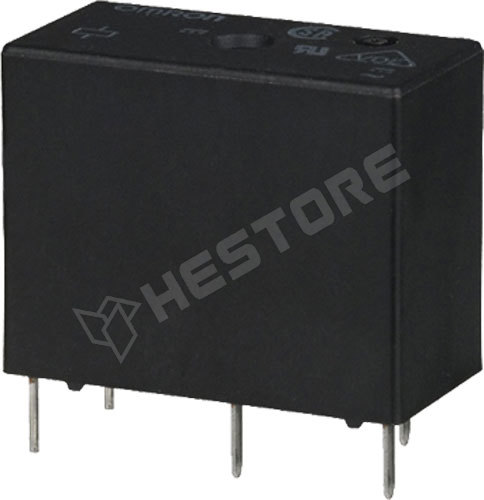

G5Q-1-EU 5VDC

Relay, 5 VDC, 10 A / 250 VAC

Manufacturer partno	G5Q-1-EU 5VDC
RoHS	yes
Manufacturer	OMRON
Mounting	PCB
Terminal pitch	2.54mm
Operating temperature	-40...85°C
Body dimensions	20.3 x 10.3 x 15.8mm
DC contacts rating	5 A / 30 VDC
Contacts configuration	SPDT
AC contacts rating	10 A / 250 VAC
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	10A
Switched voltage	max 30V DC, max 277V AC
Relay variant	miniature
Coil resistance	63Ω
Operate time	10ms
Release time	5ms
Coil power consumption	400mW
Relay series	G5Q-EU
Contact resistance	100mΩ
Coil current	80mA
Enclosure description	standard seal
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	10A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.380.39

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	2 063 Ft (1 624 Ft +VAT)
5+	1 776 Ft (1 398 Ft +VAT)
10+	1 720 Ft (1 354 Ft +VAT)
20+	1 677 Ft (1 320 Ft +VAT)
50+	1 625 Ft (1 279 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 3000
