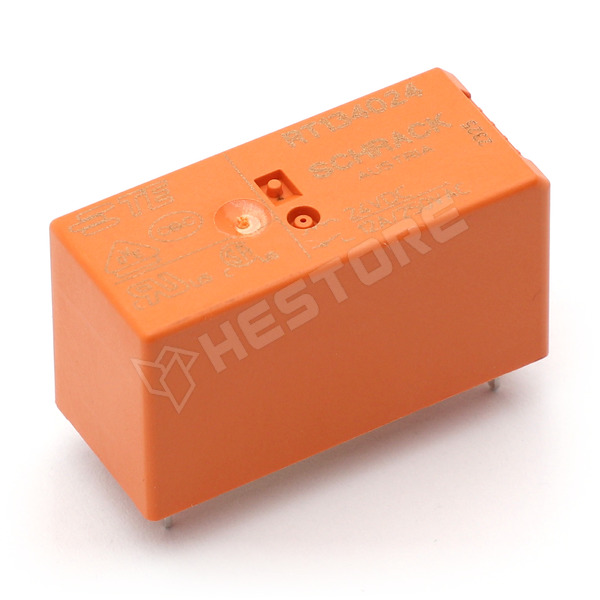

RT134024

Relay, SPST-NO, 24V DC, 12A / 250V AC, 12A / 24V DC, Number of pins: 4

RoHS	yes
Manufacturer	TE Connectivity
Weight	14g
Mounting	THT
Terminal pitch	3.5mm
Operating temperature	-40...70°C
Number of pins	4
Body dimensions	29 x 15.7 x 12.7mm
IP rating	IP40
Mechanical durability	30000000cycles
Contact material	AgNi
Contacts configuration	SPST-NO
Height	15.7mm
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	12A
Switched voltage	max 300V DC, max 400V AC, max 400V AC, max 300V DC
Relay variant	miniature
Coil resistance	1.44kΩ
Coil voltage min.	16.8V DC
Operate time	7ms
Release time	3ms
Coil power consumption	400mW
Relay series	RT1
Coil current	16.7mA
Switching capacity	3kVA
Max surge current	30A
DC contacts rating @R	12A / 24V DC
AC contacts rating @R	12A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.378.80

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 115 Ft
5+	910 Ft
10+	874 Ft
20+	849 Ft
50+	820 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 5000
10-15 workdays	> 150
