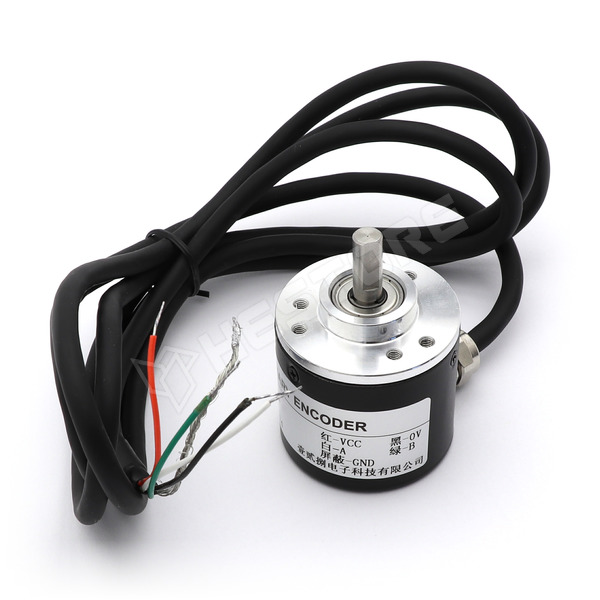

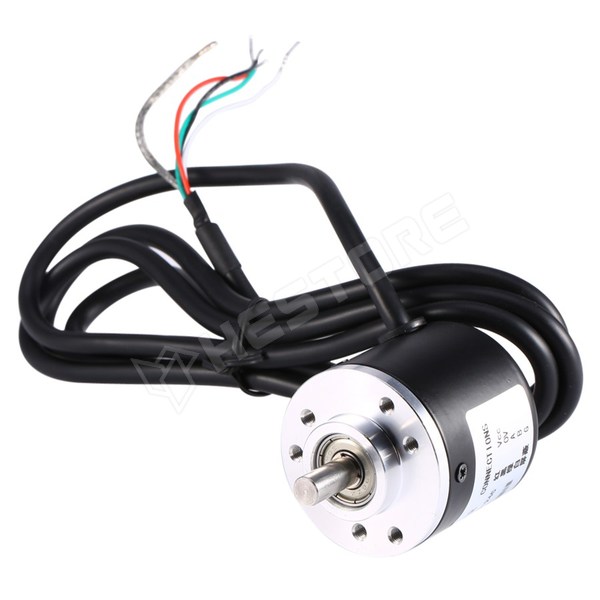

LPA3806-400BM
Incremental optical rotary encoder, 400 pulse, AB
Operating voltage: DC5-24V
Maximum mechanical speed 5000 rev / min
The electrical response frequency 20K / sec
Integrated speed 2000 rev / min
Encoder body size: d=38mm
Shaft d=6 × 13mm
Axis platform: High 5mm, d=20mm
Fixing holes for: M3 screws
Wiring: Green = A phase, white = B phase, red = Vcc positive supply, black = V0
Maximum mechanical speed 5000 rev / min
The electrical response frequency 20K / sec
Integrated speed 2000 rev / min
Encoder body size: d=38mm
Shaft d=6 × 13mm
Axis platform: High 5mm, d=20mm
Fixing holes for: M3 screws
Wiring: Green = A phase, white = B phase, red = Vcc positive supply, black = V0
| Manufacturer partno | LPA3806-400BM-G5-24C |
|---|
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.378.05
Quantity (pcs):
Unit price excl. VAT
| 1+ | 7 366 Ft |
|---|---|
| 5+ | 6 904 Ft |
| 10+ | 6 766 Ft |
| 20+ | 6 638 Ft |
| 50+ | 6 456 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 1 |
| 10-15 workdays | > 2000 |
