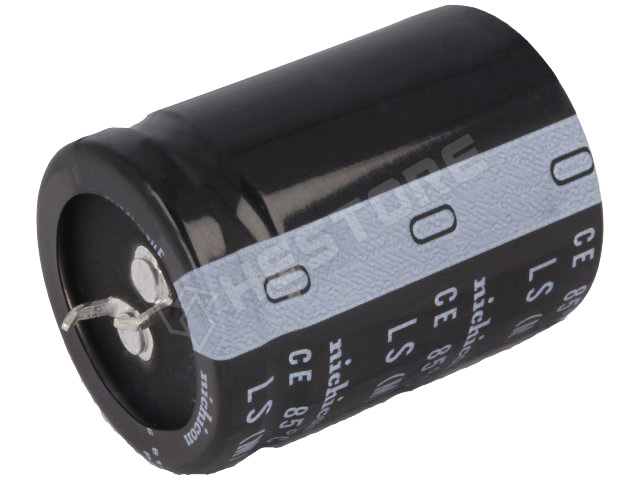

3300 uF / 100V

Capacitor, electrolytic, 3300µF, 100V, 10mm, high ripple current, long life, low impedance, Ø25x50mm, -40...85°C

RoHS	yes
Manufacturer	NICHICON
Mounting	THT
Tolerance	±20%
Type of capacitor	electrolytic
Capacitance	3300µF
Operating voltage	100V, 100V DC
Terminal pitch	10mm
Operating temperature	-40...85°C
Body dimensions	Ø25x50mm, Ø25 x 50mm
Service life	3000h
Capacitors features	long life, low impedance, high ripple current
Leads	SNAP-IN
Leakage current	1.72mA
Max. operating current	4.15A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.375.17

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 286 Ft
5+	2 033 Ft
10+	1 978 Ft
20+	1 933 Ft
50+	1 876 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
