Main category » Capacitors » Foil capacitor »

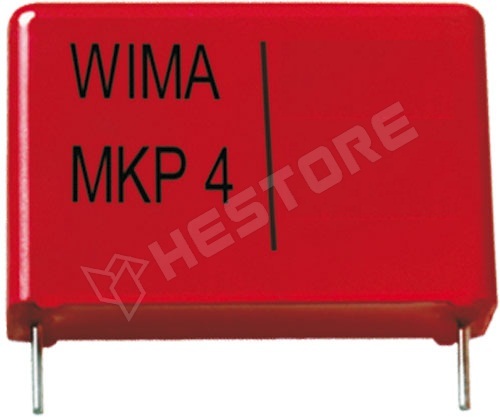

150nF / 160 VAC

Layer capacitor

Manufacturer partno	MKP4F031503F00JSSD
Manufacturer	WIMA
Mounting	THT
Tolerance	±5%
Type of capacitor	polypropylene (PP)
Capacitance	150nF
Terminal pitch	10mm
Operating temperature	-55...100°C
Body dimensions	5x11x13mm
Enclosure material	self-extinguishing, UL94V-0
Climate class	55/100/56
Max. operating voltage	250V DC, 160V AC
Capacitor application	high frequency circuits, timing circuits, oscillating circuits
Leads dimensions	len. 6mm
Pulse resistance	150V/μs
Capacitance - µF	0.15µF

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.374.04

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	248 Ft
5+	155 Ft
10+	133 Ft
20+	122 Ft
50+	113 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 5000
