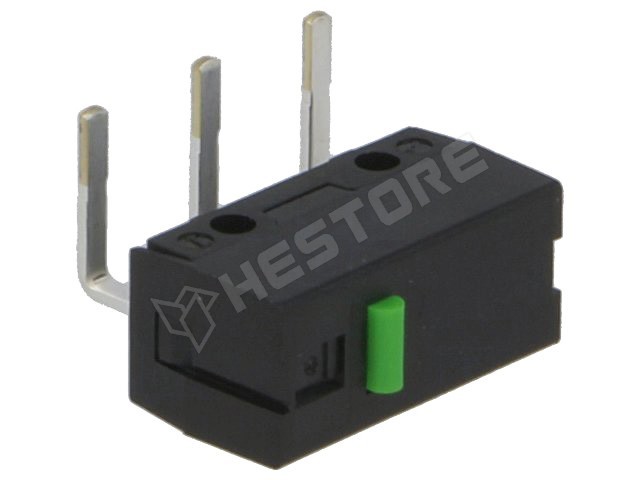

D2FS-F-N-A

Mikrokapcsoló

Manufacturer partno	D2FS-F-N-A
RoHS	no
Manufacturer	OMRON
Terminal pitch	5.08mm
Operating temperature	-20...70°C
Body dimensions	12.8x6.5x5.8mm
Leads	for PCB, angled, right
Min. insulation resistance	100MΩ
IP rating	IP40
Mechanical durability	100000cycles
Type of switch	microswitch SNAP ACTION
Stable positions number	1-position
Switching method	OFF-(ON)
Contact material	silver
Contacts configuration	SPST-NO
Switches features	without lever
Operating Force	0.85N
Max. contact resistance:	100mΩ
Electrical life	10000cycles
Key stroke	0.5mm
Manufacturer series	D2FS
DC contacts rating @R	0.1A / 6V DC
Összes pozíciók száma	2
Korpusz anyaga	plastic

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.371.90

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	678 Ft
5+	491 Ft
10+	463 Ft
20+	444 Ft
50+	427 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 500
