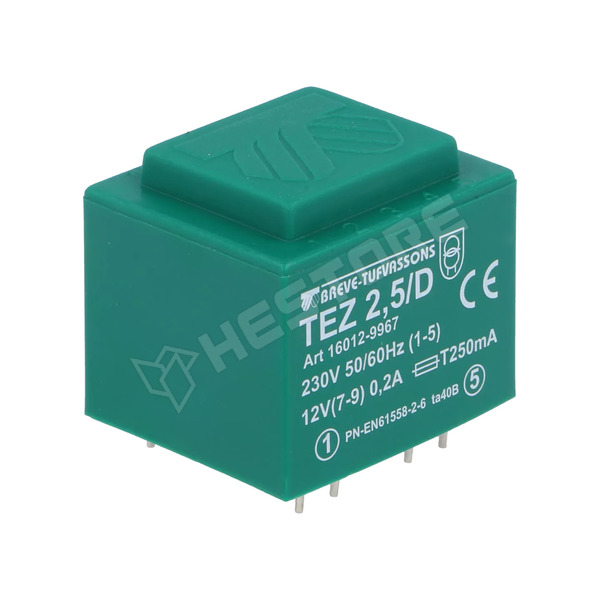

1x12V 2,5VA 230V

PCB transformer, encapsulated, EI30, 2.5VA, 230V AC, 12V, 208.3mA

Manufacturer partno	TEZ2.5/D230/12V
RoHS	yes
Manufacturer	BREVE TUFVASSONS
Voltage [V]	12
Secunder [pc]	1
Power [VA]	2.5
Core	EI30
Power	2.5VA
Mounting	PCB
Body dimensions	33 x 28 x 27mm
IP rating	IP00
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	12V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
Thermal class	Ta40B
Secondary winding terminals	7-9
Primary winding terminals	1-5
A dimension	28mm
A1 dimension	20mm
A2 dimension	20mm
B dimension	33mm
C dimension	27mm
Secondary winding current 1	208.3mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.371.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 326 Ft
5+	1 112 Ft
10+	1 073 Ft
20+	1 044 Ft
50+	1 011 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 50
