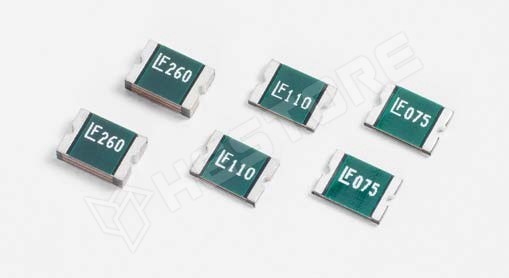

1812L110/33MR

PTC 15V, 1.1A, 1812L

Manufacturer partno	1812L110/33MR
RoHS	no
Manufacturer	LITTELFUSE (HAMLIN)
Case	1812L
Power	800mW
Operating temperature	-40...85°C
D dimension	1.2mm
Current rating	1.1A
A dimension	4.73mm
B dimension	3.41mm
C dimension	2mm
Max. voltage	33V DC
Switched current	1.95A
Manufacturer series	1812L
Type of fuse	PTC polymer
Max surge current	20A
Min. resistance	60mΩ
Max resistance	200mΩ
E dimension	0.65mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.370.16

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	129 Ft
25+	115 Ft
50+	107 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 20
3 workdays	> 3000
